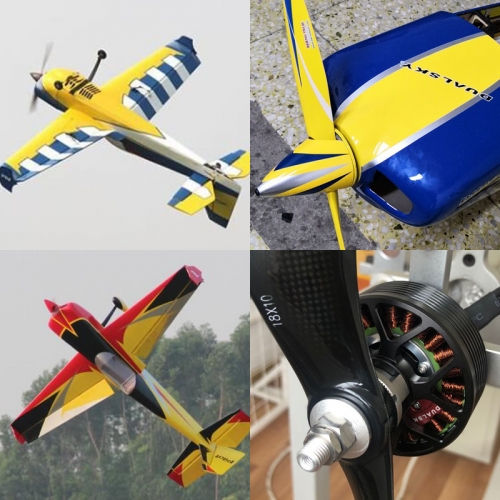

Dualsky GA1500R Racing Edition X-motor for 70E-80E class aircraft, 60~64in wingspan 3D aircraft.

GA-1500R (Racing edition)

465.00 ₪Price
  • K/V: 550 K/V
    Weight w/o accessories: 275g
    Outer Diameter: 69mm
    Length w/ mounts: 57mm
    Length(overall): 89mm
    Diameter of Shaft: 8mm (Internal), 8mm (Output)
    Mounting holes pitch: 55mm to 58mm
    Slots,Poles: 24, 28
    Idle Current(Io) @10V: 2.3A
    Resistance(Ri): 13.5mOhm
    Nominal Voltage(V): 18.5V~22.2V, 5S~6S Lipo
    Peak power[15s]: 1680W (2.4HP)
    Bursts current[15s] & MAX torque: 80A, 1.52N*M
    Cruising power[8 mins]: 850W
    Recommended ESC & Settings: Dualsky Summit 100 Light
    Propeller: 5S: 14x7, 15x8, 16x8E, 17x8 |  6S: 14x7, 15x8, 16x8E
    Weight of sports airplane: up to 7kg
    Weight of 3D airplane: up to 3.3
    Applications: For 70E-80E Class
    3D airplane (upto 60in ~ 64in wingspan)
